Linear Molecules in SPFIT/SPCAT
Interim Summary
So far, we have installed all the necessary software, examined the spectrum of a simple linear molecule, and estimated its rotational constant and centrifugal distortion constant. We have also obtained a high-level overview of SPFIT and SPCAT. Next, we will set up the model that we have derived so far for OCS in SPFIT/SPCAT. Now, we want to set up the model for OCS we derived so far in SPFIT/SPCAT.
The *.par and *.int File
In our previous model, we determined the rotational constant $B=6081.49 \text{ MHz}$ and the centrifugal distortion constant $D = 1.29 \text{ kHz}$. These will be our starting point for the SPFIT/SPCAT model. You can download the initial *.var file and *.int file and inspect them in your preferred text editor. Both files are adapted from the respective CDMS entry. The *.var file has the following lines:
OCS
2 100 10 0 0.0000E+00 1e+37 -1.0000E+00 1.0000000000
l -1 1 0 0 0 1 1 1 0 -1
100 6081.49 1e-37 /B
200 -1.29e-3 1e-37 /-D
Compare the format you can see here with the format specified in the documentation. Let's go through it line by line:
- Title of the project/molecule for your own convenience
- Settings connected to the fitting of the Hamiltonian; for now, only the first two parameters are important:
- Maximum number of parameters
- Maximum number of assignments
- Options regarding the molecule of interest
- Definition of parameter $B$
- Definition of parameter $-D$
It is important, that the maximum number of parameters is set to at least the actual number of parameters in your model. The maximum number of assignments is important when fitting the model, as it specifies the number of parameters that are read. If it is set lower than the actual number of parameters, the last parameters will be ignored which often leads to confusion. However, if you specify a value that is larger than the actual number of parameters or assignments, running SPFIT will update these values to the exact number of parameters or assignments.
All the parameter lines follow the same format:
- Paramter identifier
- Paramter value
- In *.var files: Parameter uncertainty; In *.par files: How much the parameter is allowed to float (change) in the fit
- A label of up to 10 characters that is delimited by '/'
The parameter coding is explained in greater detail in the documentation and a short summary is given in the following.
Parameter Coding
| EX | FF | I2 | I1 | NS | TYP | KSQ | NSQ | V2 | V1 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Digits | 1 | 2 | 1 | 1 | 1 | 2 | 1 | 1 | 1-3 | 1-3 |
V2 and V1 specify the (vibrational) state that the parameter belongs to. Depending on the number of defined states (defined by the NVIB parameter, the 3rd parameter in the third row) they span 1-3 digits. For less than 10 states, one digit is used, for less than 100 states, two digits are used. It is important to note here, that the highest possible value (9 for one digit, 99 for two digits, 999 for three digits) has a special meaning as these parameter values will be applied to all states. This can be handy when defining e.g., vibrational states via rotation-vibration interaction parameters.
NSQ (short for N squared) is the power of $N(N+1)$ that the parameter value is multiplied with and similarly KSQ specifies the power of $N_z^2$. Here, $N$ denotes the total rotational angular momentum quantum number (excluding any spins! This means $N + S = J$) and $N_z$ its projection on the $z$-axis.
TYP specifies the projection type where 1-3 are reserved for the projections onto the $a$, $b$, and $c$ axes, respectively. Subsequent values of TYP specify powers of $N_+^{2n} + N_-^{2n}$ with TYP = $3 + n$ and $n$ running from 1 to 8. For example, TYP = 4 corresponds to $N_+^{2} + N_-^{2}$, TYP = 5 to $N_+^{4} + N_-^{4}$, ...
This covers everything we will need for this basic tutorial. With the knowledge gathered here, you can work out the parameter codes for the $B$, $D$, and $H$ parameters of a linear molecule.
Not all parameters that can be coded should be used in the Hamiltonian. Depending on the chosen Hamiltonian, only a specific subset of parameters should be used. See the information on A- and S-reduction, for example on the PROSPE page.
When adding new parameters to the model, it is usually best to test parameters that increase either NSQ, KSQ, or TYP by 1 from parameters already included. For a linear molecule, this is straightforward, as the value of NSQ will always increase by 1. However, for asymmetric tops this can result in a large number of potential parameters and testing them automatically can be a viable option. This can be done for example with the Pyckett library. Finally, once you have added a parameter to your model, you should always check its value and its uncertainty. If the value is unphysical (e.g., $D$ is larger than $B$) or is not properly determined, this could indicate an overfitting of effective (in the sense that it is unphysical) model.
For now it is sufficient to understand that the last two digits (00) specify the state - in this case, the ground vibrational state. The third last digit, $j$, specifies the rank of the total angular momentum operator $J^{2j}$. In our example, the parameter value in the first row is multiplied by $J^2$ and the parameter value in the second row is multiplied by $J^4$ (therefore specifying $-D$ instead of $D$). Thus, the complete rotational Hamiltonian is
$$ \mathbf{H}_\text{rot} = B \mathbf{J}^2 - D \mathbf{J}^4 $$which results in the energy expression
$$ E_\text{rot}/h =BJ(J+1)-D\left(J(J+1)\right)^{2} $$Advanced Details on *.par files for linear molecules
SPFIT and SPCAT allow to fit a wide variety of different molecules and hence also molecule classes. For linear molecules, some special considerations apply.
- The CHR parameter (first parameter in the third row) is set to "l" by convention to indicate a linear molecule. However, this is nowadays purely a convention and does not influence the operation (anymore).
- The sign of SPIND (the second parameter in the third row) is negative. Otherwise unnecessary quantum numbers will be printed in the *.cat file.
- The values for $K_\text{min}$ and $K_\text{max}$ are set to zero (fourth and fifth parameters in the third row).
The *.int file looks as follows:
OCS
1 60503 1028.6544 0 199 -6.5 -5.7 1300.
1 0.71520 /K. Tanaka et al. JCP 82 (1985) 2835
Once again, we will dissect the file line by line:
- Title
- Settings
- Dipole moment specifier, dipole moment value, comment (delimited by '/')
For now, we will ignore the different settings in the second row. The dipole moment is important for the strength of the transitions and is specified in Debyes.
The *.cat File
We can generate the *.cat file, which holds the predicted transitions, from the *.par and *.int files by opening a terminal in the folder of the *.par and *.int files and running
spcat OCS
The terminal output should read
OCS.int
OCS.var
OCS.out
OCS.cat
OCS.str
OCS.egy
OCS Tue Apr 29 14:39:51 2025
INITIAL Q = 1028.6544, NEW Q IS RELATIVE TO MIN.EGY.= 0.0000
NUMBER OF LINES = 99
TEMPERATURE - Q(SPIN-ROT.) - log Q(SPIN-ROT.)
300.000 1027.7543 3.0119
225.000 770.9829 2.8870
150.000 514.1557 2.7111
75.000 257.2727 2.4104
37.500 128.8104 2.1100
18.750 64.5744 1.8101
9.375 32.4559 1.5113
sorted 99 lines
This indicates that SPCAT ran successfully and that three new files have been created. The *.out file provides a summary of the SPCAT run, the *.egy file contains the calculated energy levels, and the *.cat file contains the corresponding transitions between the energy levels. The *.cat file is a fixed-width-format, with the columns being
- Frequency in MHz
- Estimated uncertainty (which has no meaning yet, as we arbitrarily set the uncertainties of the parameters $B$ and $D$ to zero)
- The base 10 logarithm of the integrated intensity in units of $\text{nm}^2\text{ MHz}$
- Degrees of freedom in the rotational partition function (atoms: 0, linear: 2, non-linear: 3)
- Energy of the initial rotational level in wavenumbers
- Degeneracy of the final energy level
- A tag to identify the molecule in the database
- Identifier for the quantum number format
- Quantum numbers; in our case only two quantum numbers are present: the final ($J'$) and initial ($J''$) values of $J$
Take a moment to verify that the values in the *.cat file match with the values we calculated previously for our pen-and-paper model. We should now be at exactly the same point as with our pen-and-paper model.
Improving the Model

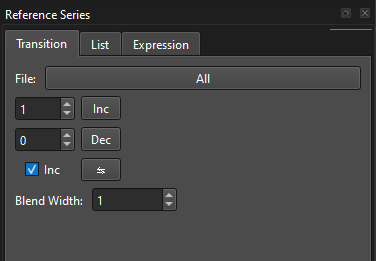

Open LLWP and load the OCS spectrum and the *.cat file. In the Reference Series window, select Transition and set the upper and lower quantum numbers to 1 and 0, respectively. Ensure that the Inc checkbox beneath the quantum numbers is checked (this tells LLWP, that we want this quantum number to increase in the Loomis-Wood plot). Set the number of plots to at least 10 (Ctrl + N), the relative offset to zero (Ctrl + G) and the width to a few MHz (Ctrl + W).

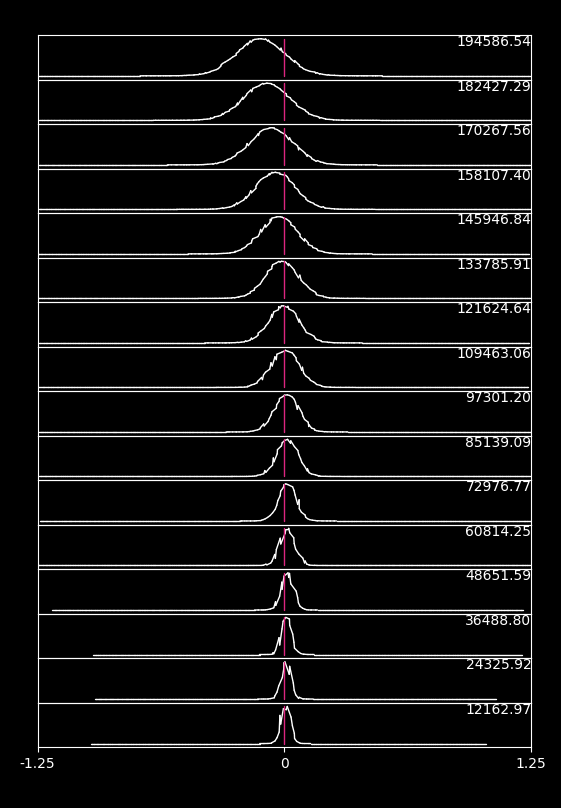

You should now see a Loomis-Wood plot of OCS. Depending on the value of plot_annotationfstring in your config, the top right of each plot will show either the quantum numbers (if the value is set to {qns}), or the predicted position (if the value is set to {x:.2f}). To view higher or lower transitions in the series, you can increase or decrease the quantum numbers in the Reference Series window using the Inc or Dec buttons. For higher transitions, the predictions and center positions of the experimental lines do not match perfectly but should deviate in a smooth trend. This suggests, that our parameter values are slightly inaccurate or that additional higher-order parameters are missing.
In order to refine our model, we need to assign the predictions to the experimental spectrum. First, verify that you have selected a Gaussian as the lineshape (Fit > Choose Fit Function > Gauss), then assign all transitions in the spectrum by selecting the area around them with the mouse. The assignments will then appear in the New Assignments window. Save the new assignments by pressing the Save button in the New Assignments window, preferably in the same folder as the *.var and *.cat files. This should result in this *.lin file being created.
Before we can fit the Hamiltonian to the assignments, we need a model in *.par format. As the *.par and *.var formats are almost identical, copy the content of the OCS.var file to a new OCS.par file. If we run SPFIT now (try it by running spfit OCS in the terminal), our model will not change. The output of the SPFIT run reads
OCS.par
OCS.lin
OCS.fit
OCS.bak
OCS.var
OCS Tue Apr 29 15:19:32 2025
LINES REQUESTED= 100 NUMBER OF PARAMETERS= 2 NUMBER OF ITERATIONS= 10
MARQUARDT PARAMETER =0.0000E+000 max (OBS-CALC)/ERROR =1.0000E+037
Converting Line 16
Finished Quantum 16
MARQUARDT PARAMETER = 0, TRUST EXPANSION = 1.00
MICROWAVE AVG = -0.016228 MHz, IR AVG = 0.00000
MICROWAVE RMS = 0.044302 MHz, IR RMS = 0.00000
END OF ITERATION 1 OLD, NEW RMS ERROR= 0.88603 0.88603
OCS Tue Apr 29 15:19:32 2025
FIT COMPLETE
You can see that a single iteration of 10 requested iterations ran through before the fit converged. With SPFIT you can remember that one iteration is equal to none. So, why did nothing change?
- The number of parameters is high enough (2)
- The number of requested lines is high enough (100 requested, 16 lines in the *.lin file)
However, we have to tell SPFIT that we actually want to float the $B$ and $D$ parameters. Therefore, set their uncertainties to 1e+37. The correct *.par file should look like this
OCS
2 100 10 0 0.0000E+00 1e+37 -1.0000E+00 1.0000000000
l -1 1 0 0 0 1 1 1 0 -1
100 6081.49 1e+37 /B
200 -1.29e-3 1e+37 /-D
Now, running SPFIT (run spfit OCS in the terminal) will result in the following output:
OCS.par
OCS.lin
OCS.fit
OCS.bak
OCS.var
OCS Tue Apr 29 15:28:02 2025
LINES REQUESTED= 100 NUMBER OF PARAMETERS= 2 NUMBER OF ITERATIONS= 10
MARQUARDT PARAMETER =0.0000E+000 max (OBS-CALC)/ERROR =1.0000E+037
Converting Line 16
Finished Quantum 16
MARQUARDT PARAMETER = 0, TRUST EXPANSION = 1.00
MICROWAVE AVG = -0.016228 MHz, IR AVG = 0.00000
MICROWAVE RMS = 0.044302 MHz, IR RMS = 0.00000
END OF ITERATION 1 OLD, NEW RMS ERROR= 0.88603 0.02467
Finished Quantum 16
MARQUARDT PARAMETER = 0, TRUST EXPANSION = 1.00
MICROWAVE AVG = 0.000116 MHz, IR AVG = 0.00000
MICROWAVE RMS = 0.001234 MHz, IR RMS = 0.00000
END OF ITERATION 2 OLD, NEW RMS ERROR= 0.02467 0.02467
OCS Tue Apr 29 15:28:02 2025
FIT COMPLETE
You can see that the initial iteration had a microwave root-mean-square (RMS) of $44\text{ kHz}$ and that the fit improved to $1\text{ kHz}$ in the second iteration and then converged. The RMS value is given by
$$ \text{RMS} = \sqrt{\frac{1}{N} \sum_i \left( \nu_i - \nu_{i.0} \right)^2} $$with the experimental frequencies $\nu_i$, the calculated frequencies $\nu_{i,0}$, and the number of lines $N$. You can think of it as the average deviation between the experimental and predicted positions. The weighted root-mean-square (WRMS) values (stated as the OLD, NEW RMS ERROR in the SPFIT output) is defined as
$$ \text{WRMS} = \sqrt{\frac{1}{N} \sum_i \left( \frac{ \nu_i - \nu_{i.0} }{\Delta \nu_i}\right)^2} $$where $\Delta \nu_i$ are the respective experimental uncertainties. The WRMS value indicates whether the deviations between the experimental and predicted transition frequencies on average do exceed (WRMS > 1) or fall below (WRMS < 1) the experimental uncertainties. Therefore, a WRMS value of 1 is ideal and suggests that (given your model has no discrepancies) your experimental uncertainties were chosen appropriately. It is important to bear in mind that both the RMS and WRMS values are statistical values, meaning that very few outliers have a significant impact on them. Thus, residual plots should also be used to evaluate the quality of the fit.
Check the resulting parameter values for $B$ and $D$ in the *.par or the *.fit file which should be $B= 6.08149\text{ MHz}$ and $D=1.302\text{ kHz}$, respectively. If we run SPFIT again (try it!), only a single iteration will run through as the model is already converged. Seeing a single iteration in the output can therefore either mean that your model is already converged or something is configured incorrectly. To determine which of the two cases applies, change a rotational parameter slightly. If everything is configured correctly, this should result in more than one iteration running through.
Uncertainties of our Assignments
So far we have given our assignments standard uncertainties of $50 \text{ kHz}$ (this value is the default value in LLWP; See the Default Uncertainty input in the New Assignments window). However, our model indicates an average deviation between the model and the experimental positions of less than $2 \text{ kHz}$. Unfortunately, the parameter errors in SPFIT depend on the absolute and not the relative uncertainties of the assignments. The consequences are nicely summarized on the PROSPE website. To make a long story short, you have a options to make sure that the parameter uncertainties stated by SPFIT are (approximately) standard errors:
- Multiply the parameter uncertainties by $C = \text{RMS} * \sqrt{N_\text{Lines} / (N_\text{Lines} - N_\text{Fitted Constants}) }$
- Multiply all assignment uncertainties by the same factor $C$
- Set the FRAC parameter to the Microwave RMS value (or even better to $C$) and refit. However, it can be tedious to keep the FRAC parameter updated
- Use negative FRAC values, -1 corresponds to standard errors, -2 to $2\sigma$, ...
For large datasets, a WRMS value of about 1 results in the parameter uncertainties being the standard errors. The *.par and *.var files that we used already had FRAC set to -1, meaning that the uncertainties in the *.fit and *.var files are actually standard errors.
Adding More Parameters to the Model
Including $-D$ significantly improved our model. This raises the question, should we add further higher-order parameter? For OCS, the next parameter would be $H$ which is the parameter corresponding to $J^6$, which we can add to the model by adding the following line to the *.par file
300 1.0e-37 1e+37 /H
and increasing the number of parameters NPAR (first parameter in second row) to at least three. Then run SPFIT again to get the following output
OCS.par
OCS.lin
OCS.fit
OCS.bak
OCS.var
OCS Tue Apr 29 18:47:18 2025
LINES REQUESTED= 16 NUMBER OF PARAMETERS= 21 NUMBER OF ITERATIONS= 10
MARQUARDT PARAMETER =0.0000E+000 max (OBS-CALC)/ERROR =1.0000E+037
Converting Line 16
Finished Quantum 16
MARQUARDT PARAMETER = 0, TRUST EXPANSION = 1.00
MICROWAVE AVG = 0.000116 MHz, IR AVG = 0.00000
MICROWAVE RMS = 0.001234 MHz, IR RMS = 0.00000
END OF ITERATION 1 OLD, NEW RMS ERROR= 0.02467 0.02446
Finished Quantum 16
MARQUARDT PARAMETER = 0, TRUST EXPANSION = 1.00
MICROWAVE AVG = 0.000150 MHz, IR AVG = 0.00000
MICROWAVE RMS = 0.001223 MHz, IR RMS = 0.00000
END OF ITERATION 2 OLD, NEW RMS ERROR= 0.02446 0.02446
OCS Tue Apr 29 18:47:18 2025
FIT COMPLETE
The fit improved only marginally (compare the Microwave RMS values from the first and second iterations). However, the real issue lies in the uncertainty of the resulting parameters (taken from the *.fit file)
NEW PARAMETER (EST. ERROR) -- CHANGE THIS ITERATION
1 100 B 6081.492171( 75) -0.000000
2 200 -D -1.30137( 54)E-03 0.00000E-03
3 300 H -0.59(118)E-09 -0.00E-09
The $H$ parameter is clearly undefined, since its standard uncertainty exceeds its value. Always check the values and uncertainties of your parameters when adding new parameters to the model. If the RMS is not improving and/or there are undefined parameters, this could be a sign that the data is overfitted.
Additional Literature Data
We are slightly disappointed that we could not determine $H$ and revert our model by removing $H$ from the *.par file. But not all hope is lost! Our spectrum does not cover any transitions higher in $J$ and frequency, which we need to determine $H$. However, we can use literature data from other scientists and combine it with our own. Go to the CDMS and find the correct tag for OCS. The first three digits of the tag represent the molecular mass in atomic mass units. Then comes one digit to identify the database (5 for the CDMS), followed by the last two digits, which are a running index for all molecules with that mass. Add up the atomic masses of O, C, and S to find the correct starting point (or just hit CTRL + F and search for OCS).
Solution
Equipped with the molecule tag, open the VAMDC portal version of the CDMS and go to the Catalog section. Enter the tag in the Tag search field and click on the doc button of the catalog entry. Then go to Files and download the *.lin file. The columns in the *.lin file are $J'$, $J''$, the frequency, the frequency uncertainty, and a comment indicating the publication. You should see assignments ranging from $12\text{ GHz}$ to beyond $1\text{ THz}$ and from $J=0$ to $J=90$.
The CDMS summarizes, curates, and provides literature data which is an immensely valuable task. If you use data from the CDMS you can acknowledge the CDMS via the respective publications. Remember to also acknowledge the literature on which the CDMS entries are based on. This literature can be found in the documentation of each entry.
There is one final issue to resolve before we can combine our *.lin file with the literature data. Our data still has the wrong uncertainties. When fitting data of the same quality this can be no problem if the correct uncertainties are accounted for in another way, but this is essential when combining different datasets. As the RMS of our best-model was $1.2 \text{ kHz}$, we will assume uncertainties of $1.2\text{ kHz}$ for our data. The corrected *.lin file, with the literature data added, is available here for comparison.
Before running SPFIT, make sure you have increased the number of lines in your *.par file. The RMS and WRMS will both be quite high. Create some predictions with SPCAT, then load the *.lin and the *.cat file into LLWP (remove all other *.lin and *.cat files via Files > Edit Files). Then open the Residuals via the Modules menu. Increse the size of the window and press Update to see the residuals $\nu_i - \nu_{i.0}$ of your current model.

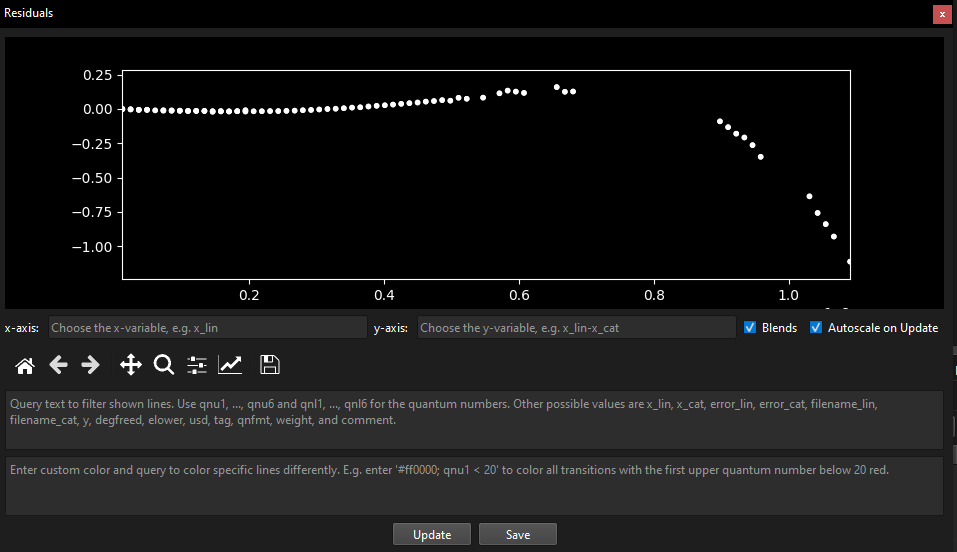

The residuals clearly hint towards missing higher-order parameters, as transitions with high $J$ values are increasingly deviate from the model. Try adding $H$ to the model and see what happens.

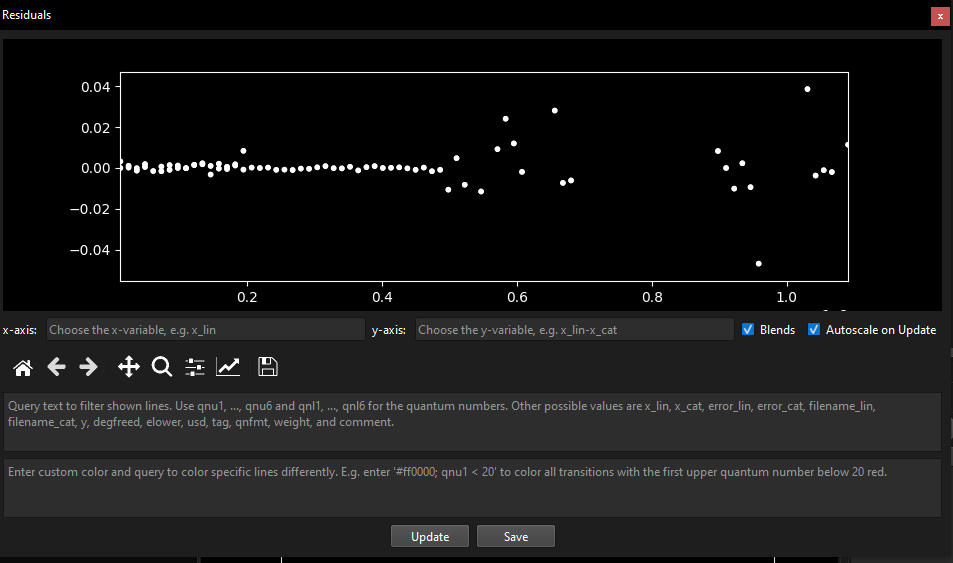

The residuals distribution is much better now but the varying quality (different uncertainties) of the dataset is quite apparent. Also, check that all parameters are well determined (spoiler: they are). Instead of plotting the residuals, plot the weighted residuals by inserting the following expression into the y-axis field:

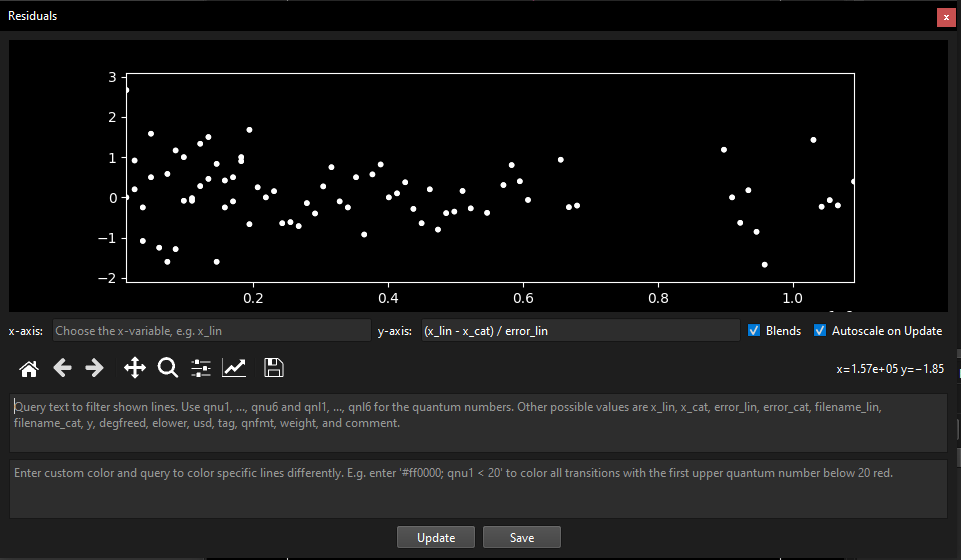

(x_lin - x_cat) / error_lin
The weighted residuals look good and indicate that no further higher-order parameters are required, but we should verify that this is true by adding the parameter $L$ with the parameter code 400 to the model. Additionally, the WRMS value of 0.8 suggests that the agreement is already better than the experimental uncertainty. For a dataset with transitions of different quality, the RMS has little meaningfulness as it is dominated by the assignments with the highest uncertainties.
Solution (Adding $L$)
1 100 B 6081.4921180( 54) 0.0000001
2 200 -D -1.3014284( 49)E-03 -0.0000001E-03
3 300 H -0.08938(179)E-09 0.00005E-09
4 400 L -4(151)E-18 -4E-18
The parameter $L$ is not at all determined, and the improvement in both RMS and WRMS is negligible.
Therefore, the parameter $L$ should not be added to the model.
Summary
We have learnt a lot in this section. Now, we are familiar with the *.par, *.lin, and *.int formats and can set up simple models in SPFIT. We also learnt how to assign lines, update the Hamiltonian, and how to check if higher-order parameters should be added to the model or not.
Last, we have learnt to always increase the number of parameters or lines when adding more assignments or parameters to our model, respectively!
A real Spectrum
After we have practiced the basics using artificial data (which has its own advantages), you can apply these skills to real data recorded in the Cologne laboratories. The spectrum (download it from here) covers the frequency range 175-219 GHz. To improve the signal-to-noise ratio, frequency modulation and a 2f-demodulation scheme at the lock-in amplifier were employed which results in lineshapes similar to the second derivatives of a Voigt profile. Certain strong lines are saturated as the main focus was to record the weaker patterns of the spectrum.
Use your model for the ground vibrational state to assign the corresponding transitions and see the next chapters on vibrational states and isotopologues to assign other patterns in the spectrum.
